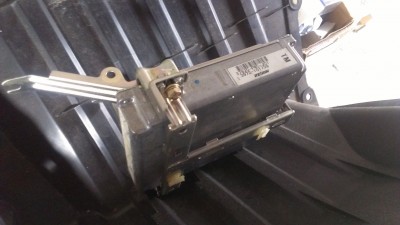

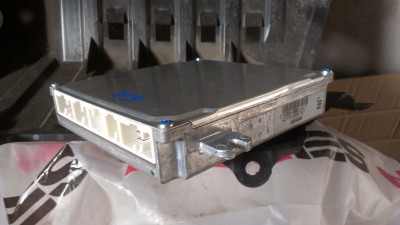

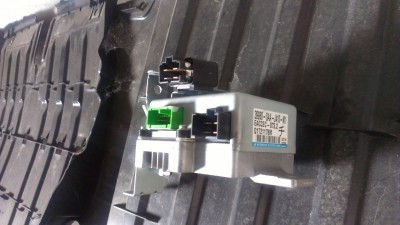

» Airbag Steuergerät - "Interner Fehler"

Zitat

Codes
Page numbers below refer to the shop manual I have.
SRS DTC Troubleshooting Index 23-40
NEC (M2), DENSO (M1) SRS unit (Without Side Airbag Model)
DTC Detection Item Notes
1-1 Open in driver's airbag inflator (see page 23-55)
1-2 Increased resistance in driver's airbag inflator (see page 23-55)
1-3 Short to another wire or decreased resistance in driver's airbag inflator (page 23-57)
1-4 Short to power in driver's airbag inflator (see page 23-59)
1-5 Short to ground in driver's airbag inflator (see page 23-61)
2-1 Open in front passenger's airbag inflator (see page 23-63)
2-2 Increased resistance in front passenger's airbag inflator (see page 23-63)
2-3 Short to another wire or decreased resistance in fr passenger's airbag inflator (23-64)
2-4 Short to power in front passenger's airbag inflator (see page 23-66)
2-5 Short to ground in front passenger's airbag inflator (see page 23-67)
3-1 Open in left side seat belt tensioner (see page 23-69)
3-2 Increased resistance in left side seat belt tensioner (see page 23-69)
3-3 Short to another wire or decreased resistance in left side seat belt tensioner (23-71)
3-4 Short to power in left side seat belt tensioner (see page 23-73)
3-5 Short to ground in left side seat belt tensioner (see page 23-75)
4-1 Open in right side seat belt tensioner (see page 23-77)
4-2 Increased resistance in right side seat belt tensioner (see page 23-77)
4-3 Short to another wire or decreased resistance in left side seat belt tensioner (23-79)
4-4 Short to power in left side seat belt tensioner (see page 23-81)
4-5 Short to ground in left side seat belt tensioner (see page 23-83)

5-_ Internal failure of SRS unit (see page 23-85)
6-_ Internal failure of SRS unit (see page 23-85)
7-_ Internal failure of SRS unit (see page 23-85)
8-_ Internal failure of SRS unit (see page 23-85)

9-1
Internal failure of the SRS unit. If intermittent, could mean internal failure of the unit or a faulty indicator light circuit. Refer to Troubleshooting Intermittent Failures (see page 23-38). Otherwise see page 23-85.

9-2
Internal failure of the SRS unit. If intermittent, could mean internal failure of the power supply (VB line). Refer to Troubleshooting Intermittent Failures (see page 23-38). Otherwise see page 23-85.

9-3 Faulty driver's seat belt buckle switch [pretty common]

9-6 Faulty left front sensor (see page 23-88)
9-7 Faulty right front sensor (see page 23-91)
10-1 Seat belt tensioners (and airbag(s)) deployed (see page 23-85)

NOTE:
Before troubleshooting DTCs 5-1 through 8-6, check battery/system voltage. If voltage is low, repair the charging system before troubleshooting the SRS system.

Zitat

DTC Troubleshooting: 5-1, 5-2, 5-4, 5-8, 6-3, 6-4, 6-7, 6-8, 7-1, 7-2, 7-3, 8-1, 8-2, 8-3, 8-4, 8-6, 8-7, 8-8, 9-1, 9-2

DTC 5-1, 5-2, 5-4, 5-8, 6-3, 6-4, 6-7, 6-8, 7-1,
7-2, 7-3, 8-1, 8-2, 8-3, 8-4, 8-6, 9-1, 9-2:
Internal Failure of the SRS Unit


NOTE: Before troubleshooting any of these DTCs, check the battery/system voltage. If the voltage is low, repair the charging system before troubleshooting the SRS system. If the battery/system voltage is now OK, ask the customer if the battery ever went dead.
1. Erase the DTC memory.

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
Does the SRS indicator stay on?


YES - Replace the SRS unit.n


NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures.
